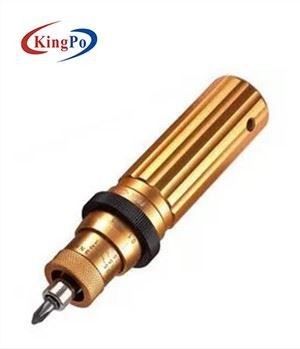

IEC 60065:2014 B Torque Screwdriver

Name: IEC 600652014 B Torque Screwdriver
Brand: KingPo
Price: 1 USD

Brand Name : KingPo

MOQ : 1

Place of Origin : China

Certification : ISO 17025 Calibration certificate

Price : To be quoted

Packaging Details : safety box

Delivery Time : 25~30 working days

Payment Terms : 100% TT in advance

Supply Ability : 3~5 units per month

Contact Now

Product Details

Standard:

Conforms to IEC 60065:2014 clause 15.4.3 b), 12.7.3.3, IEC60598.1, IEC60950.1

Product information:

SRT Torque Driver is applied in fasten pieces which have torque request, it can fasten the fastener according to pre-set torque driver. The products have bidirectional load, may pre-set the torque value, if surpasses the setting value, the driver will be idling, it can control the dynamics of thread effectively.

Feature:

General join head;

Bidirectional operation;

Preset torque value.

Parameters:

Model	SRT-0.3	SRT-0.6	SRT-1.2	SRT-3	SRT-6	SRT-12
Range	0.1~0.3N.m	0.2~0.6N.m	0.4~1.2N.m	1~3N.m	2~6N.m	4~12N.m
Min scale	0.005N.m	0.01N.m	0.02N.m	0.05N.m	0.1N.m	0.2N.m
accuracy	±5%
Length	122mm			137mm		148mm
Tie-in dimension	6.35(hexagonal)
Apply	M1	M2	M3	M4	M5	M8
Dimension	Φ27.1x121.6mm			Φ36.2x136.2mm		Φ40x147.5mm
Weight	0.1kg			0.2kg		0.3kg
